E-FILL Type 2 AC Charger 7 kW | Single phase Wallbox

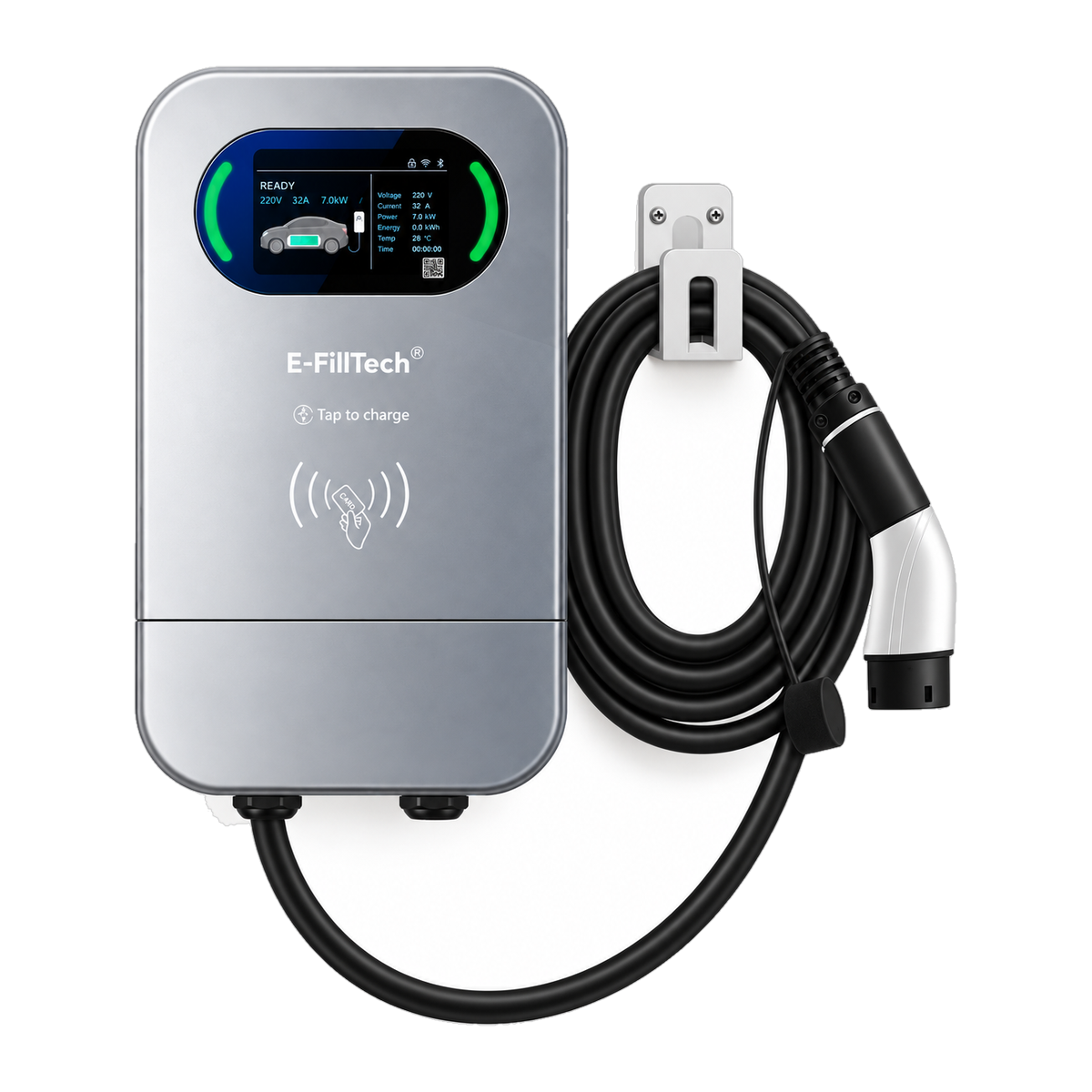

The E-FILL 7 kW AC charger is a wall-mounted wallbox built for homes and small offices on a single-phase supply. It connects your EV directly to the power your system already produces, so charging draws on daytime solar and stored surplus instead of the grid. This is the wallbox with charging gun and holster, and the enclosure is rated IP65 for Thailand’s rain, heat and humidity.
Key Highlights
- Charges from your own supply: connect the wallbox to your solar and battery system and top up the car from power you already generated.
- 7 kW output: 8 to 32 A selectable on a single phase supply, delivering a full charge overnight without stressing the connection.
- Built for Thai conditions: IP65 sealed enclosure rated for -30℃~+50℃ and up to 95% humidity, wall or post mounted indoors or out.
- Twelve protection layers: over-temperature, over/under-voltage, over-current, leakage, grounding, lightning, short circuit, overcharge, waterproof, anti-theft and cold-resistant protection.
- Simple to operate: LCD status screen, RGB indicator strip and RFID tap-to-start, with Wi-Fi and OCPP 1.6J support when you want scheduling and monitoring.
Technical Specifications
- Product Type: wallbox with charging gun and holster
- Rated Power: 7 kW
- Input / Output Voltage: 100~240VAC 50/60Hz 1Phase
- Output Current: 8A/10A/13A 16A/22A/32A
- Phases: Single phase
- Charging Interface: IEC 62196 Type 2
- Cable: 5m or more lengths are Customizable
- Standby Power: <5W
- User Interface: LED(RGB)/LCD(4.3inch/5inch)/RFID(mifare ISO&IEC 14443A)
- Communication: Wi-Fi 802.11b/g/n@2.4GHz
- Protocol: OCPP1.6J(option)
- Standards: EN IEC 61851-1: 2019
- Ingress Protection: IP65
- Operating Temperature: -30℃~+50℃
- Humidity: Max.95%(non-regulating)
- Protection Functions: Over-temperature, short circuit, grounding, lightning, over-current, leakage, waterproof, over-charge, over-voltage, under-voltage, anti-theft, cold-resistant protection
- Certification: CE, ISO, FC, TÜV Rheinland, RoHS, UL, CQC
- Note: Charging Interface can be changed according to customer needs
