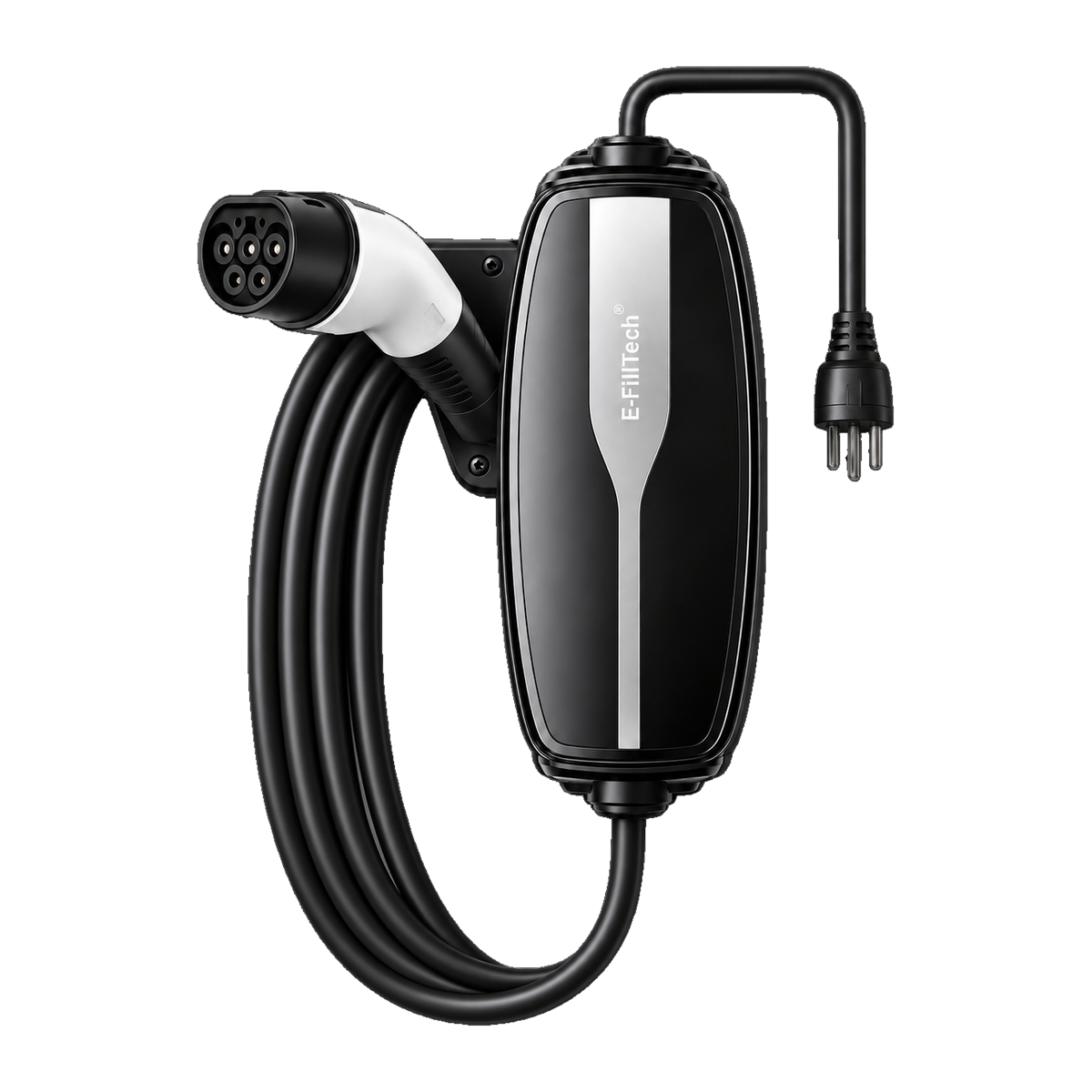

E-FILL Portable EV Charger 3.5 kW | Type 2, No Screen
The E-FILL 3.5 kW portable charger is a carry-along charging cable for drivers who need to charge away from a fixed wallbox. It uses an RGB LED indicator instead of a screen and plugs into a standard household or industrial socket, so you can top up at home, at the office or at a holiday rental. The unit is sealed to IP65 and rated for Thailand’s rain, heat and humidity.
Key Highlights
- Charge anywhere: keep it in the car and charge from any compatible socket instead of relying on a fixed installation.
- Adjustable current: 8 A / 10 A / 13 A / 16 A selectable, so you can match the draw to the circuit you are plugged into and avoid tripping a breaker.
- Interchangeable plugs: the input plug can be swapped for different countries — UK, NZ/AU, EU, BRA, ZAF, CEE and NEMA.
- Built for Thai conditions: IP65 sealed enclosure rated for -30 to +50 °C and up to 95% humidity.
- Twelve protection layers: over-temperature, over/under-voltage, over-current, leakage, grounding, lightning, short circuit, overcharge, waterproof, anti-theft and cold-resistant protection.
Technical Specifications
- Product Type: Portable EV charger (carry-along), no screen, LED indicator only
- Rated Power: 3.5 kW
- Input / Output Voltage: 100~240VAC 50/60Hz 1Phase
- Output Current: 8 A / 10 A / 13 A / 16 A selectable
- Charging Interface: IEC 62196 Type 2
- Input Plugs: 6 A–16 A series (UK, NZ/AU, EU, BRA, ZAF), 10 A–32 A series (3-pin CEE, 5-pin CEE), NEMA series (5-15P, 5-20P, 6-20P, 10-30P, 14-50P)
- Cable: 5 m, other lengths available on request
- Standby Power: < 3 W
- User Interface: LED (RGB) indicator, control buttons
- Communication: Wi-Fi 802.11 b/g/n @ 2.4 GHz
- Protocol: OCPP 1.6J (optional)
- Standards: EN IEC 61851-1:2019
- Ingress Protection: IP65
- Operating Temperature: -30 to +50 °C
- Humidity: Max.95%(non-regulating)
- Protection Functions: Over-temperature, short circuit, grounding, lightning, over-current, leakage, waterproof, over-charge, over-voltage, under-voltage, anti-theft, cold-resistant protection
- Certification: CE, ISO, FC, TÜV Rheinland, RoHS, UL, CQC
- Note: Charging interface can be changed to suit customer requirements. Type 1 (SAE J1772) and GB/T versions are available to order.
