E-FILL Type 2 AC Charger 7 kW | Single phase Wallbox

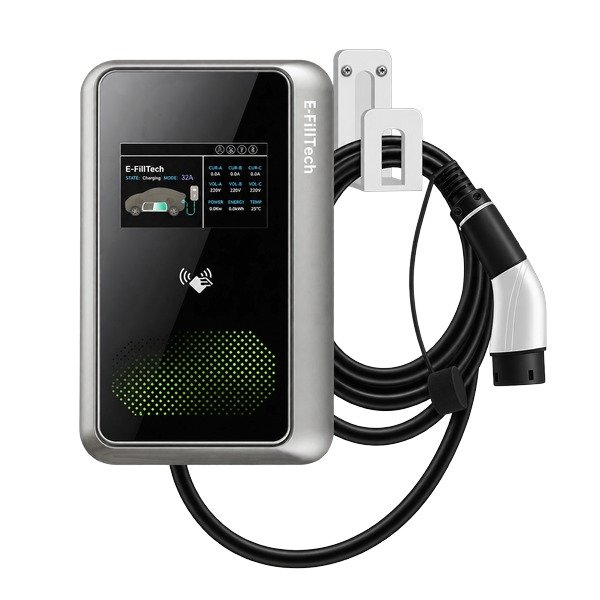

The E-FILL 7 kW AC charger is a wall-mounted wallbox built for home garages on a single-phase supply. It connects your EV directly to the power your system already produces, so charging draws on daytime solar and stored surplus instead of the grid. The tethered Type 2 cable stays with the unit, and the enclosure is rated IP65 for Thailand’s rain, heat and humidity.
Key Highlights
- Charges from your own supply: connect the wallbox to your solar and battery system and top up the car from power you already generated.
- 7 kW output: 8 to 32 A selectable on a single phase supply, delivering a full charge overnight without stressing the connection.
- Built for Thai conditions: IP65 sealed enclosure rated for -30℃~+50℃ and up to 95% humidity, wall or post mounted indoors or out.
- Twelve protection layers: over-temperature, over/under-voltage, over-current, leakage, grounding, lightning, short circuit, overcharge, waterproof, anti-theft and cold-resistant protection.
- Simple to operate: LCD status screen, RGB indicator strip and RFID tap-to-start, with Wi-Fi and OCPP 1.6J support when you want scheduling and monitoring.
Technical Specifications
- Product Type: AC wallbox, wall or post mounted
- Rated Power: 7 kW
- Input / Output Voltage: 100~240VAC 50/60Hz 1Phase
- Output Current: 8A/10A/13A 16A/22A/32A
- Phases: Single phase
- Charging Interface: IEC 62196 Type 2
- Cable: 5m or more lengths are Customizable
- Standby Power: <5W
- User Interface: LED(RGB)/LCD(4.3inch/5inch)/RFID(mifare ISO&IEC 14443A)
- Communication: Wi-Fi 802.11b/g/n@2.4GHz
- Protocol: OCPP1.6J(option)
- Standards: EN IEC 61851-1: 2019
- Ingress Protection: IP65
- Operating Temperature: -30℃~+50℃
- Humidity: Max.95%(non-regulating)
- Protection Functions: Over-temperature, short circuit, grounding, lightning, over-current, leakage, waterproof, over-charge, over-voltage, under-voltage, anti-theft, cold-resistant protection
- Certification: CE, ISO, FC, TÜV Rheinland, RoHS, UL, CQC
- Note: Charging Interface can be changed according to customer needs
