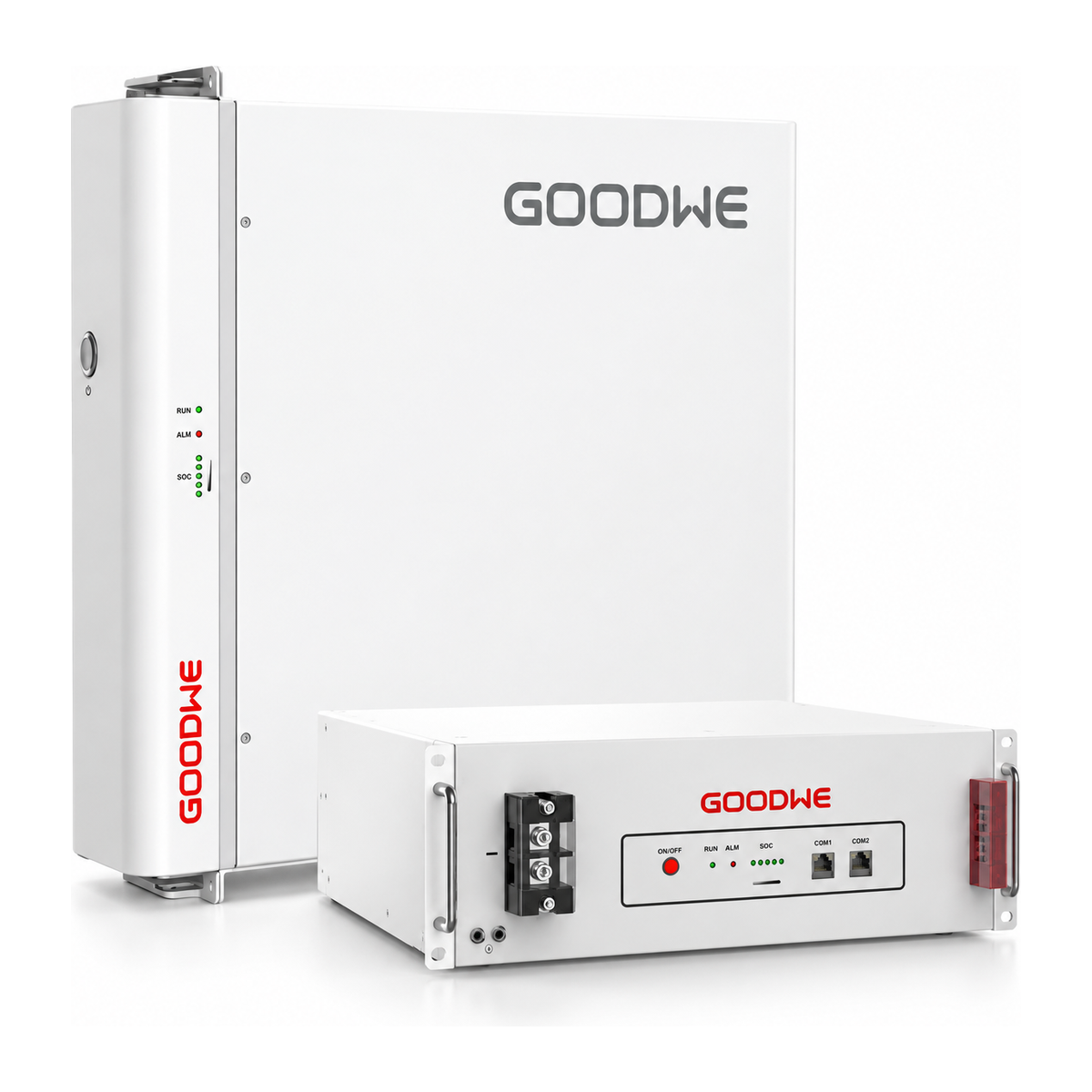

GoodWe Lynx A Series 5kWh | Modular Low-Voltage Battery
The GoodWe Lynx A Series is a low-voltage storage battery built for the modern home. Using lithium iron phosphate (LiFePO4) chemistry for high safety and long service life, it combines high energy density with flexible installation, delivering dependable backup power even where space is limited.
Key Highlights
- Safety and durability: High-grade LFP (LiFePO4) cells with stable cycling performance and rigorous insulation resistance testing.
- Compact and lightweight: Cell-to-Pack (CTP) construction at just 40 kg, easy to install and space-efficient.
- Intelligent control: Remote diagnostics and firmware updates through the inverter, with automatic restart after undervoltage.
- Flexible mounting and expansion: Supports cabinet, floor-stacked and wall-mounted installation, with straightforward capacity expansion as needs grow.
Technical Specifications
- Model: LX A5.0-10
- Usable Energy: 5.0 kWh
- Cell Type: LFP (LiFePO4)
- Nominal Voltage: 51.2 V
- Operating Voltage: 47.5 – 57.6 V
- Nominal Power: 3 kW
- Nominal Current: 60 A
- Communication: CAN
- Weight: 40 kg
- Dimensions (W x H x D): 442 x 133 x 420 mm (excl. handles) / 483 x 133 x 452 mm (incl. handles)
- Mounting: Cabinet / floor-stacked / wall-mounted
- IP Rating: IP21
