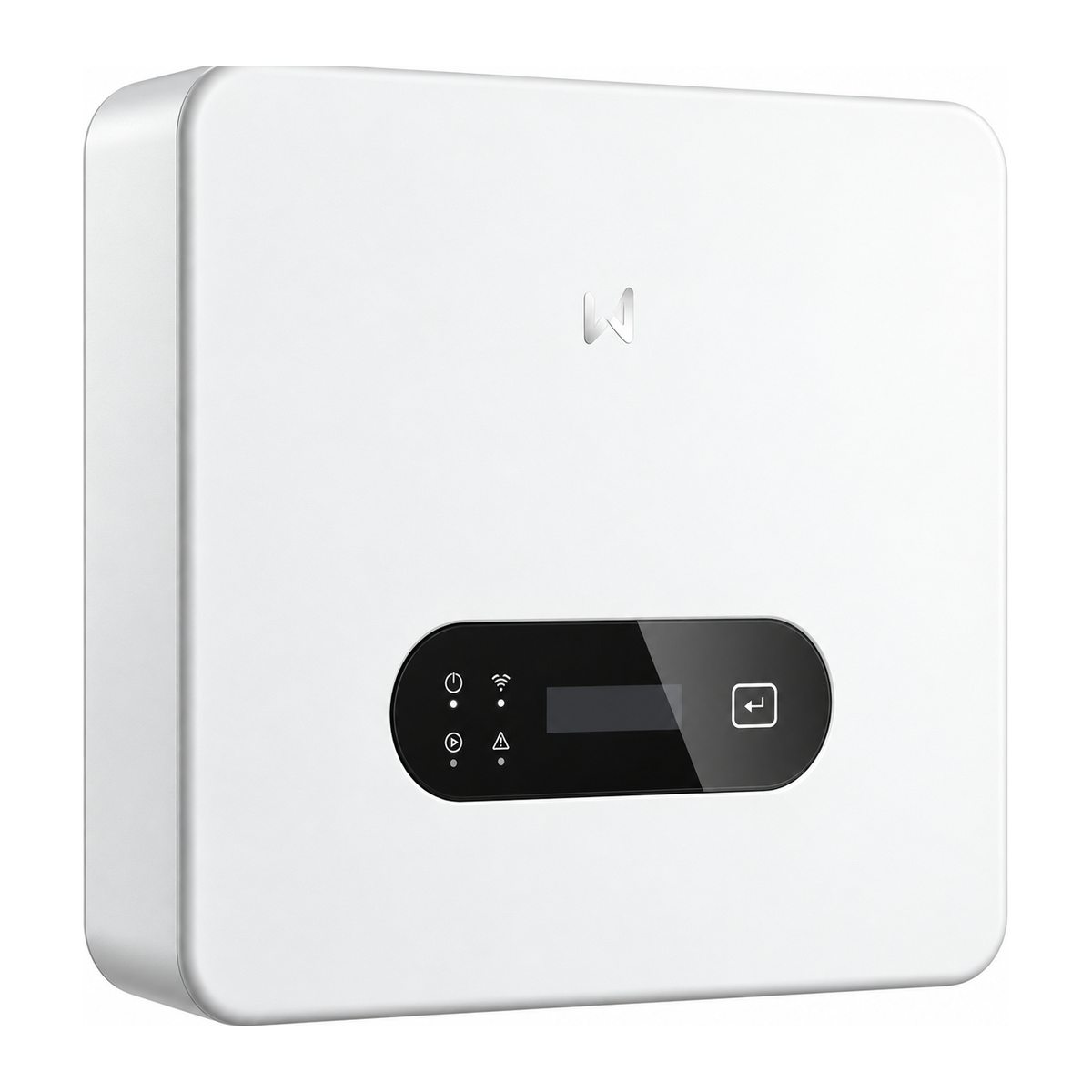

GoodWe DNS G4 Series (3-6kW) | Single-Phase Grid-Connected Inverter for Residential
The fourth-generation DNS single-phase grid-connected inverter from GoodWe is built for the modern home. Dual MPPT design, up to 98.1% conversion efficiency, a compact enclosure 31% lighter than its predecessor, and near-silent operation deliver dependable solar performance.
Key Highlights
- High efficiency, modern module support: Up to 20 A input current per string with DC oversizing capability up to 200%.
- Near-silent operation: Noise level below 25 dB – unobtrusive in residential settings.
- Intelligent safety: AI-driven AFCI 3.0 arc detection and interruption, with a built-in rapid shutdown transmitter.
- Lightweight, easy to install: Just 9.2 kg for straightforward installation and servicing.
Technical Specifications
- Models: GW3K / GW3.6K / GW4.2K / GW5K / GW6K-DNS-G40
- Nominal Output Power: 3,000 W – 6,000 W (model-dependent)
- MPP Trackers: 2 MPPT (1 string per MPPT)
- Max. Input Voltage: 600 V
- MPPT Voltage Range: 40 – 560 V (start-up 50 V)
- Max. Input Current per MPPT: 20 A (Isc: 26 A)
- Max. Efficiency: 98.1% (European Efficiency 97.2% – 97.4%)
- Communication: RS485, WiFi, LAN, Bluetooth, 4G
- IP Rating: IP66
- Dimensions & Weight: 358 x 323 x 165 mm | 9.2 kg
